Portable Syngas Analyzers

ETG Portable Gas Analyzer
NOVA 970-Series Analyzer
Wuhan NDIR Gas Analyzer

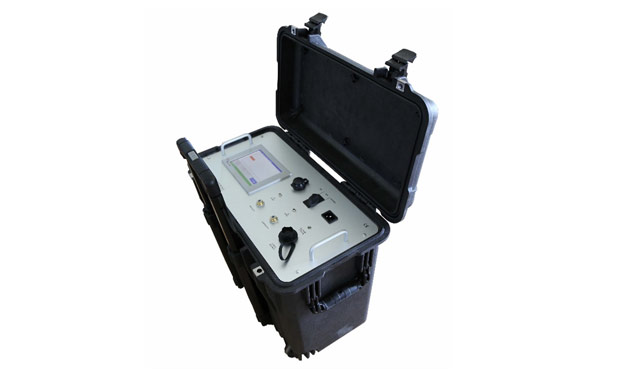

Portable Syngas Infrared analyzer model MCA 100 Syn P from ETG

The MCA 100 Syngas series of gas analyzers by ETG it’s the ideal solution for biogas and syngas measurement and industrial combustion applications because of their accuracy, stability, reliability, broad measurement range, and the variety of available form factors.
Unlike other analyzers, ETG MCA 100 Syngas non-dispersive infrared (NDIR) gas analyzers measure multiple gases in an instrument with a single optical path platform.
Analysis of CO2, CO, CH4, O2, H2S, H2, Low cost ownership, Portable version with battery pack
Modbus, Profibus, Ethernet ( optional ), Autozero, Data downloadable on USB Pen Drive
NDIR technology for CO2, CO and CH4,Automatic air purge for long life H2S cell, H2 by TCD , Arm Processor
Touch Screen monitor, Ethernet, Wi-fi and USB

NOVA Systems http://catalog.nova-gas.com/item/all-categories/roduct-lines-syngas-gasi...

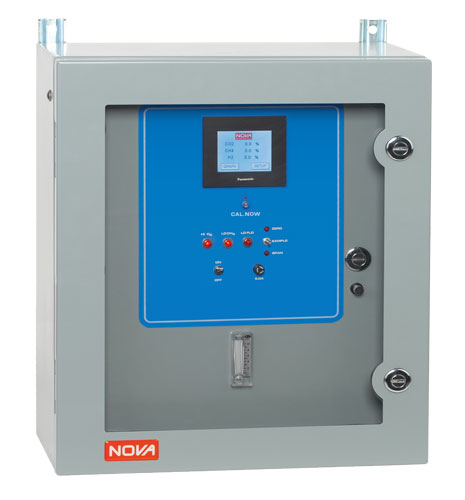

Item # 975A, Continuous Analyzer for Syn-Gas Atmospheres - O2, CO, CO2, CH4 and H2

he Nova 970 Series Syn-Gas Analyzer System has been designed with the flexibility and robustness required in the experimental and developmental environments that characterize syn gas applications.

The Nova 970 Series utilizes high-stability infrared detectors for the simultaneous measurement of CO, CO2, and CH4. In addition, the analyzer can also be supplied with a non-consumable, long-life thermal conductivity cell for H2 that compensates for the interference effects of CO, CO2, and CH4. This ensures that H2 will always read correctly regardless of the background gas composition. A non-depleting paramagnetic sensor is used for O2 analysis. All sensors/detectors are temperature-controlled or temperature-compensated for maximum analytical stability. Auto calibration functionality allows easy calibration without user intervention. The included Serial Output Package allows connection of analyzer to personal computers via a choice of USB/RS-232/RS-485. Data recording software is also included.

Wuhan Cubic Optoelectronics Co

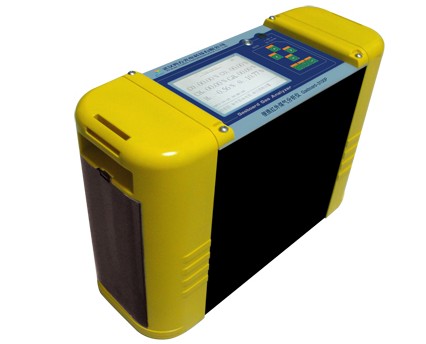

Portable NDIR Syngas Analyzer

Gasboard 3100P portable infrared coal gas analyzer is powered by Li- ion battery and can be used without AC power supply. It can be used for measurement of the concentration of CO, CO2, CH4, H2 and O2 in sample gases simultaneously. The general application is inspection,coal chemical process,steel making process such as blast furnace,converter ,coking,direct iron ore smelting reduction process.

Measuring principle: CO/CO2/CH4/CnHm: NDIR H2:TCD,O2:ECD
Measurement Range : CO: 0-75% CO2:0-40% CH4:0-75% H2: 0-75% O2:0-25% CnHm:0-10%
Precision: CH4/CO/CO2/CnHm : 2%FS ; H2/O2 : 3%FS
Resolution: CO/CO2/CH4/H2/O2/CnHm : 0.01%
